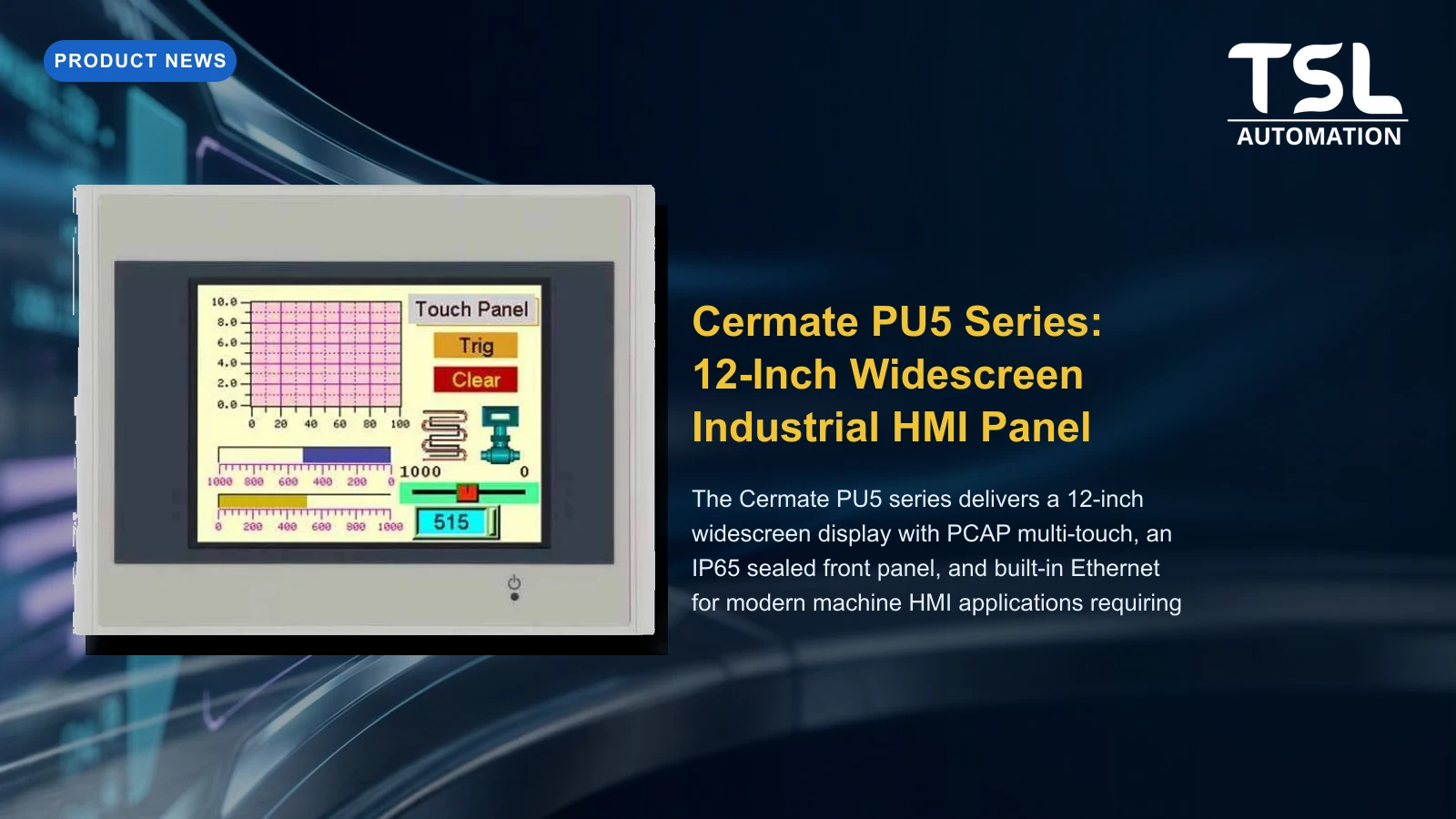

Cermate PU5 Series: 12-Inch Widescreen Industrial HMI Panel

PU5 Series Overview

The Cermate PU5 series is a 12.1-inch widescreen industrial HMI panel designed for machine operators requiring more display space than entry-level 7" panels provide — without the cost and footprint of a full 15" unit. The PU5 hits a sweet spot for medium-complexity machines: packaging lines, injection moulding presses, CNC cutting machines, and conveyor control systems.

Key Specifications

• Display: 12.1" TFT LCD, 1280×800 WXGA, 500 nits
• Touch: PCAP multi-touch (5-point), or resistive (model dependent)
• Front panel: IP65 sealed — dust and water jet resistant
• Operating temperature: 0°C to 50°C
• Memory: 512MB RAM, 256MB flash storage
• Communication: 2× RS-232/485, 1× Ethernet (100 Mbps), 1× USB Host, 1× USB Device
• PLC drivers: 200+ drivers — Siemens, Allen-Bradley, Mitsubishi, Delta, Modbus RTU/TCP, and more
• Programming software: EZware — Windows-based configuration software, free download
• Power: 24V DC

EZware Programming

The PU5 is programmed using Cermate's EZware software — a drag-and-drop screen builder available free from Cermate. EZware includes a library of pre-built objects (buttons, sliders, gauges, trend charts, alarm lists) and a PLC driver wizard that automatically configures communication settings for all supported PLCs. Typical simple screens can be built in under an hour.

The Cermate PU5 is available from TSL Automation Solutions with full India after-sales support. Contact us for pricing and sample units for evaluation.
