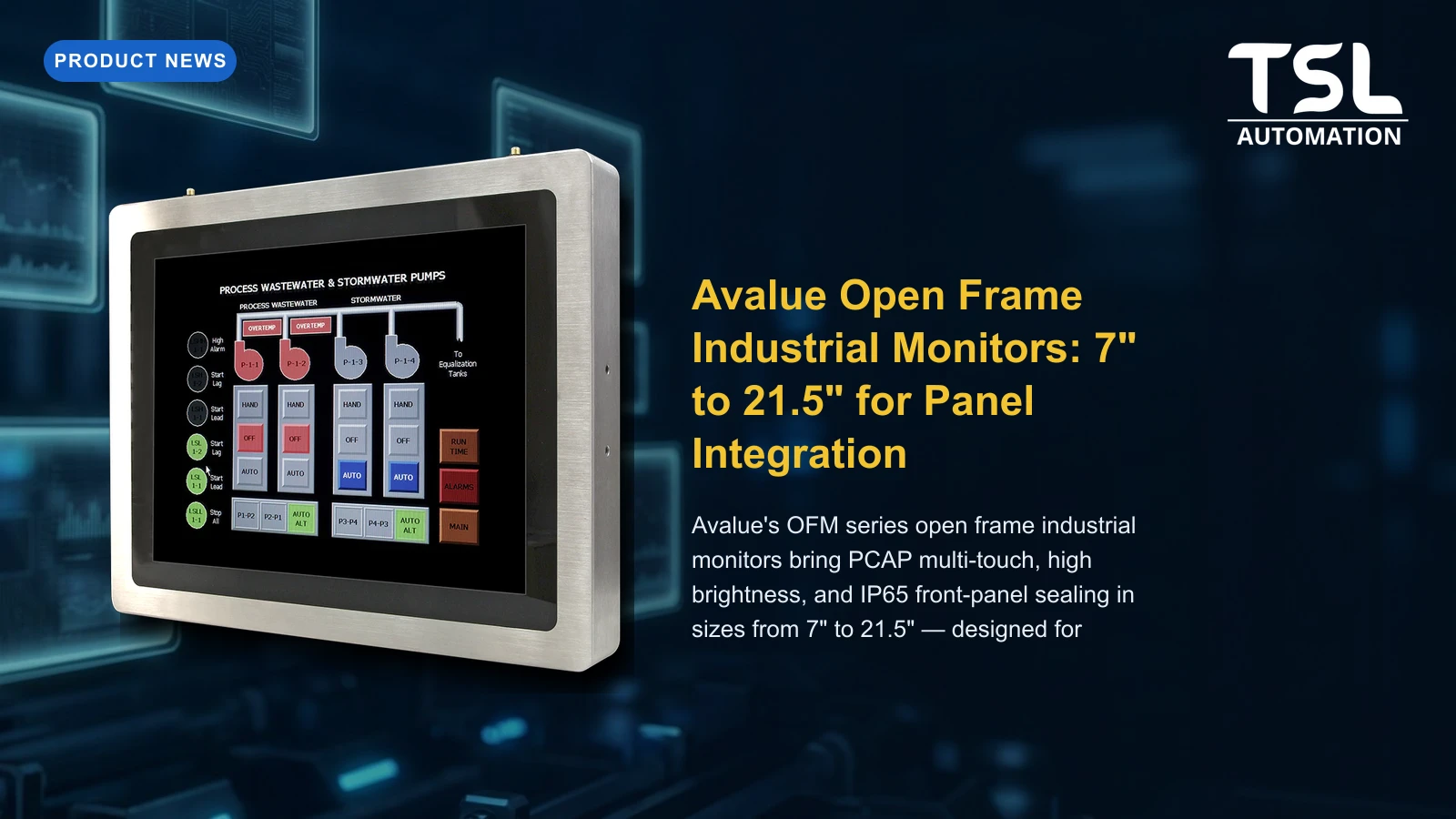

Avalue Open Frame Industrial Monitors: 7" to 21.5" for Panel Integration

What Is an Open Frame Monitor?

An open frame monitor is an industrial display module without a front bezel or rear housing — it consists of the LCD panel, controller board, and a mounting frame, designed to be integrated into a customer's own enclosure or panel cutout. Open frame monitors are used in custom HMI panels, kiosks, vending machines, medical devices, and specialised machine operator stations.

Avalue OFM Series: Key Features

• Sizes available: 7", 10.1", 12.1", 15", 15.6", 17", 19", 21.5"
• Touch technology: PCAP multi-touch (10-point), with optional resistive
• Brightness: 350–1000 nits depending on model; high-brightness for bright factory environments
• Front sealing: IP65 (when installed in cutout) — dust and water-jet resistant
• Resolution: 1024×768 (4:3) to 1920×1080 FHD (16:9)
• Interfaces: HDMI, DisplayPort, VGA (model dependent); USB Type-B for touch
• Operating temperature: 0°C to 50°C standard; −20°C to 70°C wide-temp option

Integration Considerations

Open frame monitors require a panel cutout sized to the display's active area plus a sealing gasket for IP65 compliance. Typical mounting is front-panel insert with 4-point or perimeter screw mounting to the enclosure backplate. The rear of the enclosure should allow adequate airflow for the monitor's internal cooling requirements.

TSL Automation supplies Avalue OFM series open frame monitors with local inventory for standard sizes. Custom brightness, interface, and temperature configurations are available on request — contact us for specifications and pricing.
