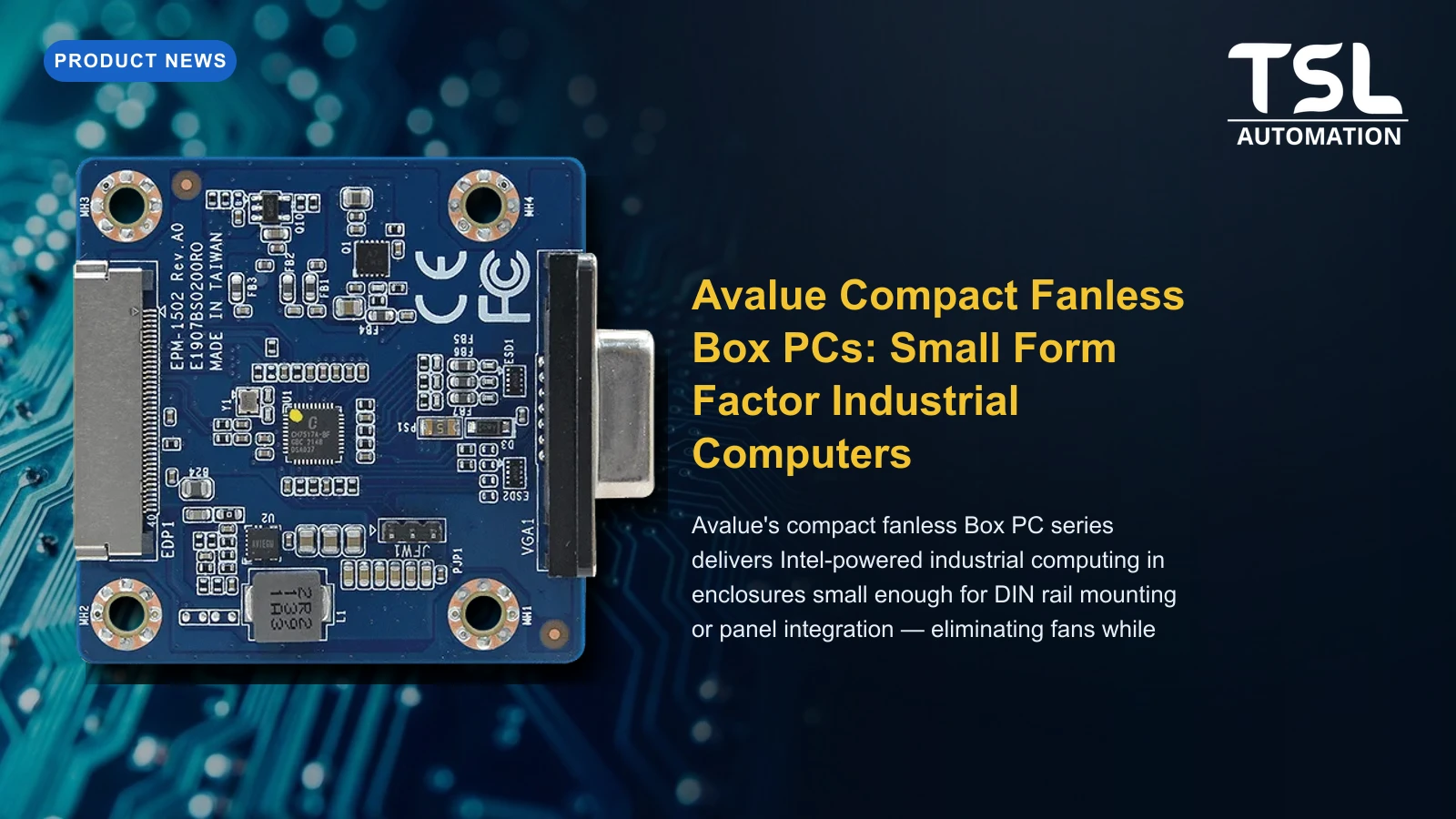

Avalue Compact Fanless Box PCs: Small Form Factor Industrial Computers

Why Compact Matters in Industrial Applications

Control panels, machine cabinets, and DIN rail enclosures have limited space. A full-size industrial PC tower or workstation simply does not fit. Avalue's compact fanless Box PCs measure as little as 120mm × 90mm × 35mm — small enough to mount inside existing control panels while delivering full x86 computing capability running Windows 10 IoT or Linux.

Compact Box PC Configurations Available

• Intel Atom x6000 series — ultra-low power (6.5W TDP); ideal for IoT gateways, data loggers, and protocol converters
• Intel Celeron N/J series — 10–15W TDP; balanced performance and power for HMI applications
• Intel Core i5/i7 (8th–12th Gen) — 15–28W TDP fanless; full SCADA and MES workstation capability in compact form

I/O Complement (Typical)

• 2–4× COM ports (RS-232/422/485)
• 2× Gigabit LAN (for OT/IT network separation)
• 4× USB 3.x
• HDMI + DisplayPort (dual display support)
• M.2 SSD slot (NVMe or SATA)
• GPIO for external hardware control
• 12–24V DC wide input

DIN Rail Mounting

Select models include a DIN rail mounting clip — simply snap the unit onto the 35mm DIN rail inside the control cabinet. This eliminates the need for custom panel drilling and enables neat, side-by-side installation alongside PLCs, relays, and terminal blocks. TSL Automation can supply DIN rail brackets for Avalue compact Box PCs — contact us for details.
